Ring Joint Gaskets (RJ Gaskets) represent the pinnacle of sealing technology for extreme service conditions. Engineered for high-pressure, high-temperature applications, these metallic sealing rings are the critical component ensuring leak-proof integrity in some of the world's most demanding industrial environments, from subsea oil and gas pipelines to high-pressure chemical reactors and power generation facilities. Unlike softer, composite gaskets, a ring joint gasket achieves its seal through controlled deformation, creating a robust, metal-to-metal seal that can withstand immense pressures, thermal cycling, and corrosive media.

The fundamental principle behind the ring joint gasket's effectiveness is its geometry. It is designed to fit into a corresponding machined groove in flanges, known as ring grooves (RJ grooves). When the flange bolts are tightened, the ring is compressed axially, causing the oval or octagonal ring to deform radially outward and inward, intimately contacting the angled walls of the groove. This "wedge" action creates two continuous lines of contact, forming an exceptionally tight, pressure-energized seal. As internal system pressure increases, it further forces the ring into the groove walls, enhancing the seal – a characteristic known as pressure energization.

Types of Ring Joint Gaskets

The two primary profiles dominate the industry, each defined by standards such as ASME B16.20 and API 6A:

• R Series (Round): Also known as RX gaskets, these are typically used with raised face flanges. They are softer than the ring groove and are designed to deform into the groove.

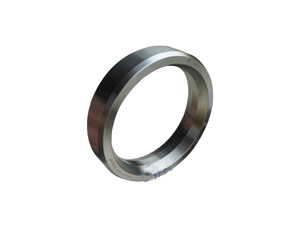

• RX Series (Pressure-Energized): A modified oval ring with a pressure channel. Internal pressure acts on the channel, providing additional sealing force, making it suitable for higher pressures.

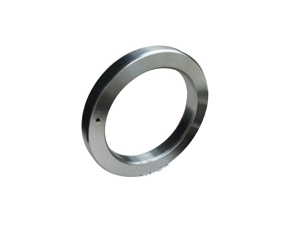

• BX Series (High Pressure/High Temperature): Designed for the most severe services, such as wellhead equipment per API 6A. BX gaskets are used with specially designed BX grooves and provide a superior seal for pressures exceeding 5,000 psi.

Key Parameters and Material Specifications

Selecting the correct ring joint gasket requires careful consideration of several critical parameters. The compatibility between the gasket material, the flange material, and the service environment is paramount to prevent corrosion, galling, and sealing failure.

Detailed Material Selection Guide

• Soft Iron (Grade F114): The most common material, excellent for general refinery and petrochemical service with non-corrosive media. Its malleability ensures good sealing.
• Low Carbon Steel (Grade F115): Offers higher strength than soft iron for moderate pressures and temperatures.
• Stainless Steel (304, 316, 316L): Standard for corrosive service, chemical processing, and offshore applications. Provides good oxidation resistance.
• Nickel Alloys (Inconel 625, Monel 400): Used for severe corrosive environments, high temperatures, and sour service (H2S present). Inconel 625 is particularly renowned for its strength and pitting resistance.
• Copper & Aluminum: Occasionally used for specific thermal conductivity or compatibility reasons.

At Kaxite, our engineering team meticulously matches the gasket material to your application's specific pressure, temperature, and media to ensure longevity and safety. Our in-house metallurgical expertise allows us to source and verify materials that meet or exceed ASTM and ASME specifications.

Installation, Inspection, and Best Practices

Proper handling and installation are as crucial as the gasket's quality. A damaged or incorrectly installed ring joint gasket will not perform.

• Inspection: Before installation, visually inspect the gasket for any dings, scratches, or distortion. The sealing surfaces must be pristine. Inspect the flange grooves for cleanliness, damage, or corrosion. Use a ring gauge to verify groove dimensions if possible.
• Cleaning: Thoroughly clean the flange grooves and the gasket itself with a solvent to remove oil, grease, and debris. Avoid abrasive pads that can scratch surfaces.
• Lubrication: Apply a thin, even film of suitable high-temperature anti-seize or lubricant (e.g., nickel-based) to the gasket's sealing surfaces. This prevents galling during bolt-up and facilitates future disassembly. Note: Silver-plated rings typically do not require lubrication.
• Alignment & Seating: Carefully place the gasket into the bottom flange groove. Ensure it sits flat and is not twisted. Align the bolt holes of the flanges.
• Bolt Tightening: Follow a cross-pattern bolting sequence (star pattern). Tighten bolts in multiple passes (e.g., 30%, 60%, 100% of torque) to ensure even compression. Always use a calibrated torque wrench and adhere to the flange manufacturer's or engineering specification's recommended torque values.

Ring Joint Gaskets FAQ

Q: Can a ring joint gasket be reused?
A: Generally, no. Ring joint gaskets are designed for single use. The controlled plastic deformation that creates the initial seal permanently alters the ring's shape. Reusing a deformed ring will not guarantee the same sealing integrity and poses a significant risk of leakage. Always install a new, certified gasket during reassembly.

Q: How do I identify the correct ring joint gasket for my flanges?
A: Identification requires several pieces of information: 1) Flange standard (e.g., ASME B16.5), 2) Nominal Pipe Size (NPS), 3) Pressure Class (e.g., 900#), 4) The Ring Number (often stamped on the flange face, e.g., R45), and 5) The required material. Consulting the original equipment manual, flange markings, or a qualified engineer like those at Kaxite is essential.

Q: What is the difference between an R-style and an RX-style ring joint gasket?
A: The R-style (oval ring) is a basic design that seals through axial compression. The RX-style is a pressure-enerergized version; it has a pressure channel on its inner diameter. When system pressure enters this channel, it pushes the ring legs outward, providing an additional sealing force. RX rings are often used for higher-pressure applications and can sometimes seal effectively in grooves with minor damage.

Q: Why is silver plating used on some ring joint gaskets?
A: Silver plating serves multiple critical functions. First, it acts as an excellent lubricant, preventing galling (cold welding) between the gasket and the carbon or alloy steel flange during tightening. Second, silver is malleable and helps fill minor surface imperfections, enhancing the seal. Third, it provides corrosion resistance for the base metal of the gasket.

Q: What causes a ring joint gasket to leak?
A: Leaks can stem from several root causes: Incorrect gasket material or hardness for the service; Damaged or corroded flange sealing grooves; Improper installation (under or over-torquing, uneven bolt load); Using a reused or damaged gasket; Flange misalignment; Thermal cycling that exceeds the design limits of the gasket material; or Chemical attack/corrosion of the gasket material.

Q: Are Kaxite ring joint gaskets traceable and certified?
A: Yes. Every batch of Kaxite ring joint gaskets comes with full material traceability. We provide Material Test Reports (MTRs) or Certificates of Conformance (COC) that detail the chemical composition, mechanical properties, heat number, and compliance with relevant standards (ASME, API, ASTM, NACE). This documentation is crucial for quality assurance, safety audits, and maintenance records in regulated industries.

Q: How should I store ring joint gaskets?
A: Store them in a clean, dry, temperature-controlled environment away from direct sunlight and corrosive fumes. Keep them in their original protective packaging until ready for use. Organize them by size and material to prevent mix-ups and physical damage. Avoid stacking heavy objects on top of them.
