Unveiling the Power of Basalt Fiber: The High-Performance Material for Modern Engineering

In the relentless pursuit of stronger, lighter, and more durable materials, engineers and designers are constantly looking beyond conventional options. Enter Basalt Fiber, a revolutionary continuous filament derived directly from molten volcanic rock. This innovative material represents a significant leap forward, offering a compelling combination of mechanical properties, environmental resistance, and cost-effectiveness. At Kaxite, we are at the forefront of this material revolution, producing premium-grade basalt fibers that empower industries to build safer, more efficient, and longer-lasting structures and products.

Unlike synthetic fibers that require complex chemical processes, Basalt Fiber's production is elegantly simple and sustainable. Selected basalt rock is crushed, washed, and melted in a furnace at approximately 1,500°C. The molten lava is then extruded through platinum-rhodium alloy bushings to create continuous filaments. This efficient process results in a material with exceptional innate properties, positioning it as a superior alternative to fiberglass and a cost-competitive option to carbon fiber in many applications.

Kaxite Basalt Fiber: Core Technical Parameters & Properties

Kaxite's rigorous production control ensures our Basalt Fiber delivers consistent, high-performance characteristics. The following parameters define the excellence of our standard product range. It is crucial to understand that properties can be tailored based on filament diameter, sizing, and weaving pattern for specific composite applications.

Physical & Mechanical Properties

• Filament Diameter: Ranging from 9 to 24 microns, with 13-17 microns being standard for most reinforcement applications.
• Density: 2.65 - 2.80 g/cm³, similar to fiberglass but with higher strength.
• Tensile Strength: 3,000 - 4,800 MPa, significantly higher than E-glass and comparable to some carbon fibers.
• Elastic Modulus: 85 - 110 GPa, offering excellent stiffness, superior to fiberglass.
• Elongation at Break: 3.0 - 3.2%, indicating good toughness and resistance to brittle failure.

Thermal & Chemical Properties

• Operating Temperature Range: -260°C to +700°C (short-term up to 1,000°C). Exceptional thermal stability with no significant loss of properties.
• Thermal Conductivity: Low, making it an effective thermal insulator.
• Coefficient of Thermal Expansion: 5.5 - 7.0 x 10⁻⁶/°C, closely matching that of concrete, which minimizes stress in composite systems.
• Chemical Resistance: Excellent resistance to alkalis, acids, and salt corrosion. Superior alkaline resistance makes it ideal for concrete reinforcement (BCR).
• Moisture Absorption: Less than 0.1%, ensuring dimensional stability in humid environments.

Comparative Material Properties Table

Kaxite Basalt Fiber Product Forms

To meet diverse industrial needs, Kaxite supplies Basalt Fiber in multiple formats. Each form is engineered with specific sizings for optimal compatibility with polymer matrices (epoxy, polyester, vinyl ester) or cementitious binders.

• Continuous Roving: For filament winding, pultrusion, weaving, and as direct reinforcement.
• Chopped Strands: Lengths from 3mm to 50mm for compounding with thermoplastics or concrete.

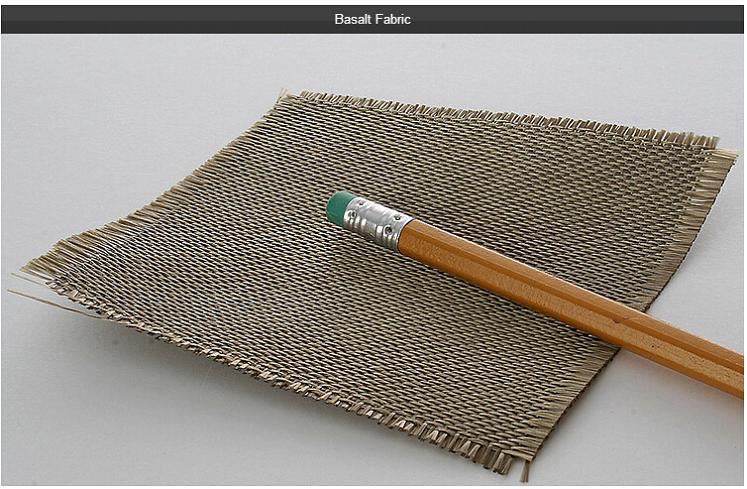

• Woven Fabrics: Including plain, twill, and satin weaves, unidirectional fabrics, and multiaxial reinforcements for composite laminates.
• Basalt Fiber Rebar (BCR): Corrosion-resistant alternative to steel rebar for concrete construction.
• Needle Mat: For thermal insulation and lightweight composite cores.
• Hybrid Fabrics: Combined with carbon or glass fibers to create tailored property profiles.

Frequently Asked Questions (FAQ) About Basalt Fiber

What exactly is Basalt Fiber and how is it made?
Basalt Fiber is a continuous filament produced directly from volcanic basalt rock. The manufacturing process involves crushing the raw basalt, washing it, and melting it in a furnace at around 1,500°C. The molten material is then extruded through specialized bushings to form continuous fibers, which are subsequently wound onto spools or further processed into chopped strands, fabrics, or other forms. Kaxite utilizes advanced technology to ensure fiber consistency and quality.

How does Basalt Fiber compare to Fiberglass (E-Glass)?
Basalt Fiber generally offers 15-30% higher tensile strength and modulus than standard E-Glass. Crucially, its thermal resistance is far superior, with a continuous operating temperature up to 700°C compared to 350°C for E-Glass. Basalt also exhibits excellent resistance to alkaline environments, making it suitable for concrete, whereas fiberglass degrades. While slightly denser, its overall performance-to-cost ratio in demanding applications is often better.

Is Basalt Fiber better than Carbon Fiber?
"Better" is application-dependent. Carbon fiber has a much higher modulus (stiffness) and lower density, making it unbeatable for ultra-high-performance aerospace and sporting goods where weight and stiffness are paramount. However, Basalt Fiber offers greater toughness (higher elongation), superior impact resistance, excellent UV and fire resistance, and vastly better chemical/alkali resistance at a significantly lower cost. For automotive, marine, construction, and corrosion-resistant industrial applications, basalt often provides a more balanced and economical solution.

What are the primary applications of Basalt Fiber?
Its applications are vast and growing. Key areas include: Construction (rebar, mesh, structural profiles, crack-control fabrics), Automotive (brake pads, composite parts, heat shields), Fire Protection (firewall barriers, protective clothing), Marine (boat hulls, decks), Corrosion-resistant Piping & Tanks, Wind Energy (reinforcement for turbine blades), and Ballistics (armor panels). Kaxite fibers are engineered to meet the specific demands of each sector.

Is Basalt Fiber an environmentally friendly material?
Yes, it is considered a green material. The production process is a single-step melt from a naturally occurring, abundant raw material, requiring no chemical additives. It consumes less energy than carbon or aramid fiber production. The material itself is inert, non-toxic, and recyclable. Furthermore, products reinforced with basalt, like BCR rebar, dramatically increase infrastructure lifespan, reducing the need for repair and replacement, which contributes to long-term sustainability.

How does Kaxite ensure the quality of its Basalt Fiber?
Kaxite implements a stringent quality management system from raw material selection to final packaging. We source high-purity, consistent basalt rock from dedicated quarries. Our melting and fiberizing technology is precisely controlled for temperature and throughput. Every batch undergoes rigorous testing for key parameters like tensile strength, filament diameter, sizing content, and chemical composition. Our technical data sheets provide certified, reliable data for engineers and specifiers.

Can Basalt Fiber be used with all types of resins?
Kaxite Basalt Fiber is compatible with most common thermoset resins, including epoxy, polyester, vinyl ester, and phenolic. The key is the application of the correct "sizing" – a chemical coating applied during production. Kaxite offers fibers with different sizings optimized for specific resin systems. For thermoplastics like PP, PA, or PEEK, we provide chopped strands with compatible sizing to ensure strong interfacial adhesion in the composite. Consultation with our technical team is recommended for optimal matrix selection.

What is the cost implication of switching to Basalt Fiber?
While Basalt Fiber has a higher raw material cost than standard E-Glass, its total life-cycle cost is often lower. The superior properties can allow for material reduction (thinner laminates), eliminate the need for additional coatings or fire retardants, and drastically extend service life in corrosive or high-temperature environments. For projects where performance, durability, and safety are critical, basalt fiber provides exceptional value. Kaxite works with clients to optimize designs for both performance and cost-efficiency.
